PRODUCT DETAILS
Sign Acrylic Sheet
Sign Acrylic Sheet is a modified PMMA sheet specially developed for the advertising signage industry. By adding impact modifiers and UV stabilizers, its impact strength reaches 10 times that of ordinary acrylic (Izod impact strength ≥15kJ/m²). The surface is specially treated to increase printing adhesion by 40%, supporting UV inkjet, screen printing and laser engraving. Standard size is 1220×2440mm with thickness ranging from 1.5mm to 12mm, available in transparent, translucent and opaque white options, making it an ideal material for durable outdoor signage.
Sign Acrylic Sheet is a modified PMMA sheet specially developed for the advertising signage industry. By adding impact modifiers and UV stabilizers, its impact strength reaches 10 times that of ordinary acrylic (Izod impact strength ≥15kJ/m²). The surface is specially treated to increase printing adhesion by 40%, supporting UV inkjet, screen printing and laser engraving. Standard size is 1220×2440mm with thickness ranging from 1.5mm to 12mm, available in transparent, translucent and opaque white options, making it an ideal material for durable outdoor signage.
Core Features
- Ultra-high Impact Resistance: 10 times that of ordinary acrylic, 30 times that of glass, suitable for high-traffic areas
- Printability: Surface tension 38-40 dynes/cm, ink adhesion ≥2.5N/cm
- Weather Stability: After 5000 hours of UV aging test, light transmittance retention ≥85%, yellowing index ΔE<3
- Processing Efficiency: No cracking during cutting, smooth engraving edges, excellent thermoforming properties
- Color Consistency: Color difference ΔE<2 for the same batch, ensuring uniform color for signage systems
- Installation Convenience: Lightweight (1.19g/cm³), can be installed with screws, adhesives or magnets
Application Scenarios

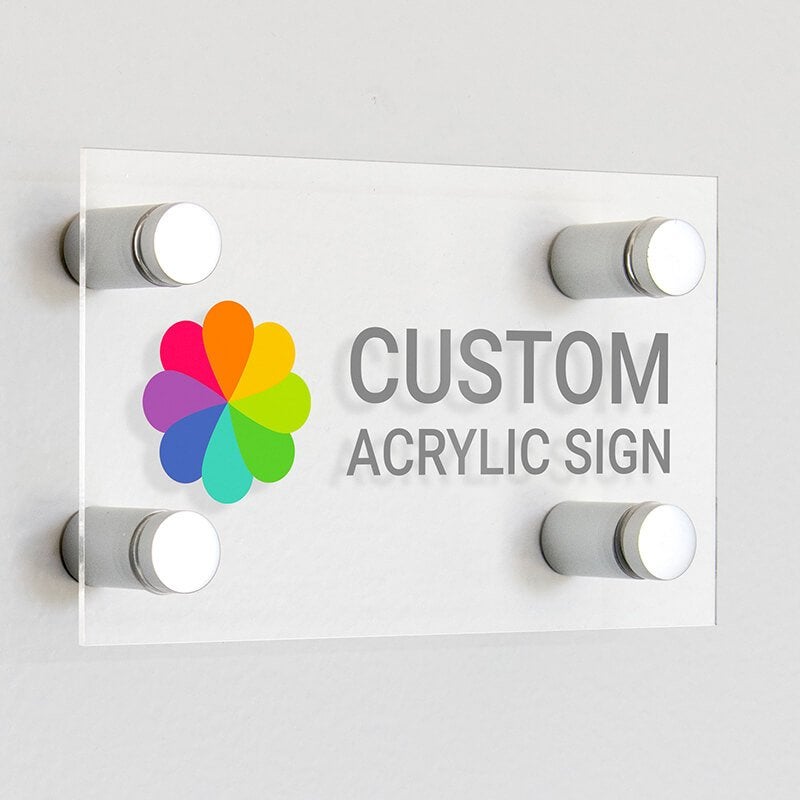

Advertising Signage
- Channel Letters: 3D illuminated letters, backlit letters, dimensional signage
- Wayfinding Systems: Directional signs, floor indicators, public information signs
- Outdoor Signage: Storefront signs, large billboards,交通标识
Commercial Displays
- Retail Displays: Promotional stands, price tags, product displays
- Exhibition Booths: Booth backdrops, brand image walls
- Light Boxes: Ultra-thin light boxes, scrolling light box panels
Special Applications
- Architectural Signage: Building signs, curtain wall signs, landmark signs
- Vehicle Graphics: Vehicle wrap substrates, body advertising panels
- Digital Printing: UV flatbed printing, solvent-based ink printing
Technical Parameters
| Property | Specification | Test Method |
| Impact Strength (Notched Izod) | ≥15 kJ/m² | ASTM D256 |
| Tensile Strength | ≥55 MPa | ASTM D638 |
| Flexural Modulus | ≥2800 MPa | ASTM D790 |
| Light Transmission (Clear) | ≥90% | ASTM D1003 |
| Heat Distortion Temperature | ≥80°C | ASTM D648 |
| Weatherability | ΔE<3 (5000h UV) | ASTM G154 |
| Print Adhesion | ≥2.5 N/cm | ASTM D3359 |
| Flame Rating | UL94 HB | UL94 |
Processing Guide
- Cutting: Laser cutting (recommended), circular saw (120-tooth alloy blade)
- Engraving: CO₂ laser engraving (power 50-100W), engraving depth adjustable 0.1-0.5mm
- Thermoforming: Heating temperature 150-170°C, minimum bending radius 5×thickness
- Printing: UV curable inks (recommended), solvent-based inks, screen printing
- Assembly: Acrylic-specific adhesives, mechanical fixing (self-tapping screws M3-M5)
Product Specifications

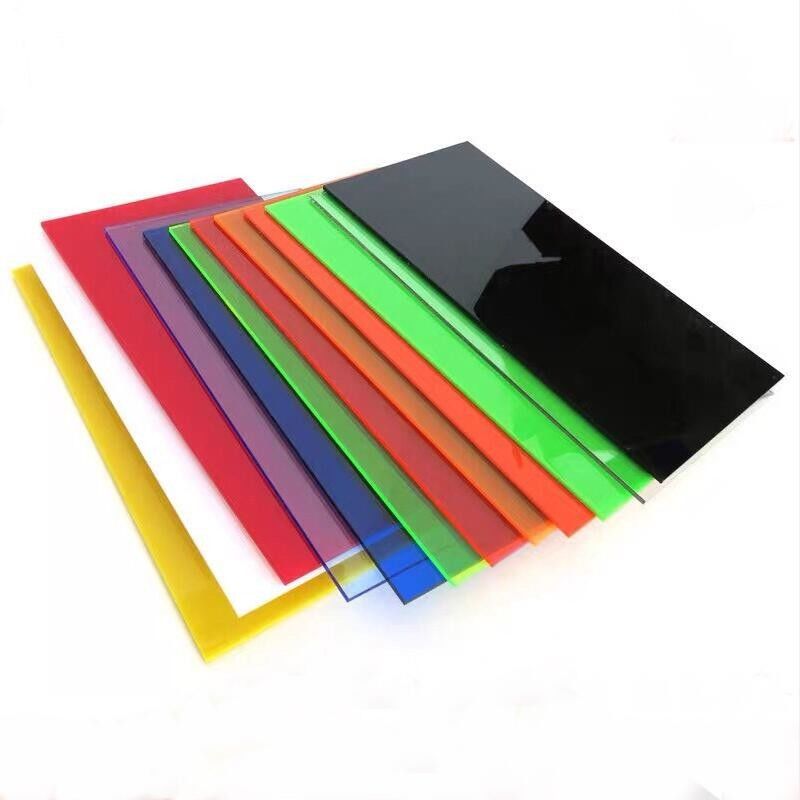

| Type | Thickness Range | Colors | Surface Finish | Applications |
| Transparent | 1.5-12mm | Clear, tinted | Glossy | Backlit signs |
| Translucent | 3-10mm | White, colored | Matte | Light boxes |
| Opaque | 3-12mm | White, black, custom | Smooth | Channel letters |
| Reflective | 3-8mm | Silver, gold | Mirror | Decorative signage |
