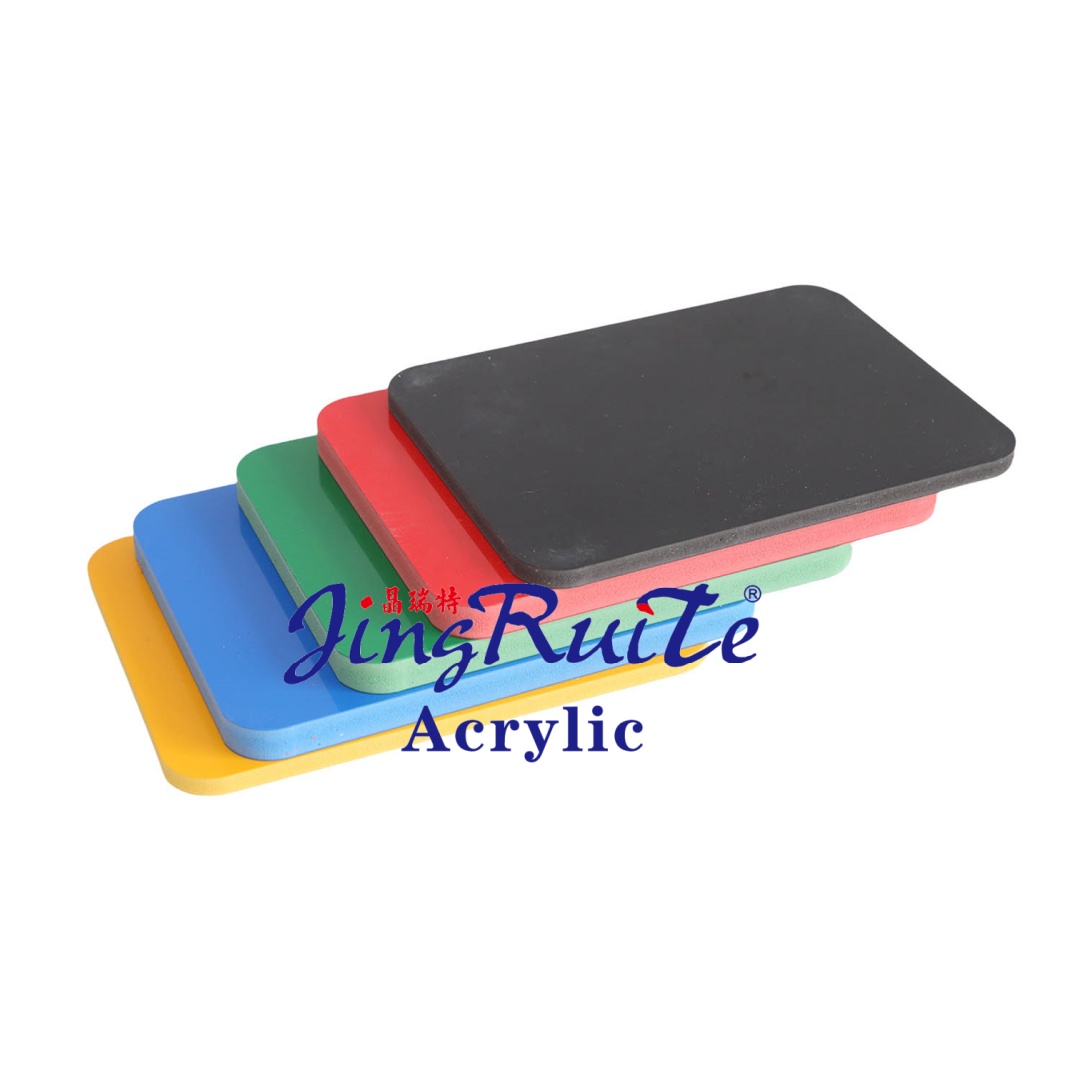

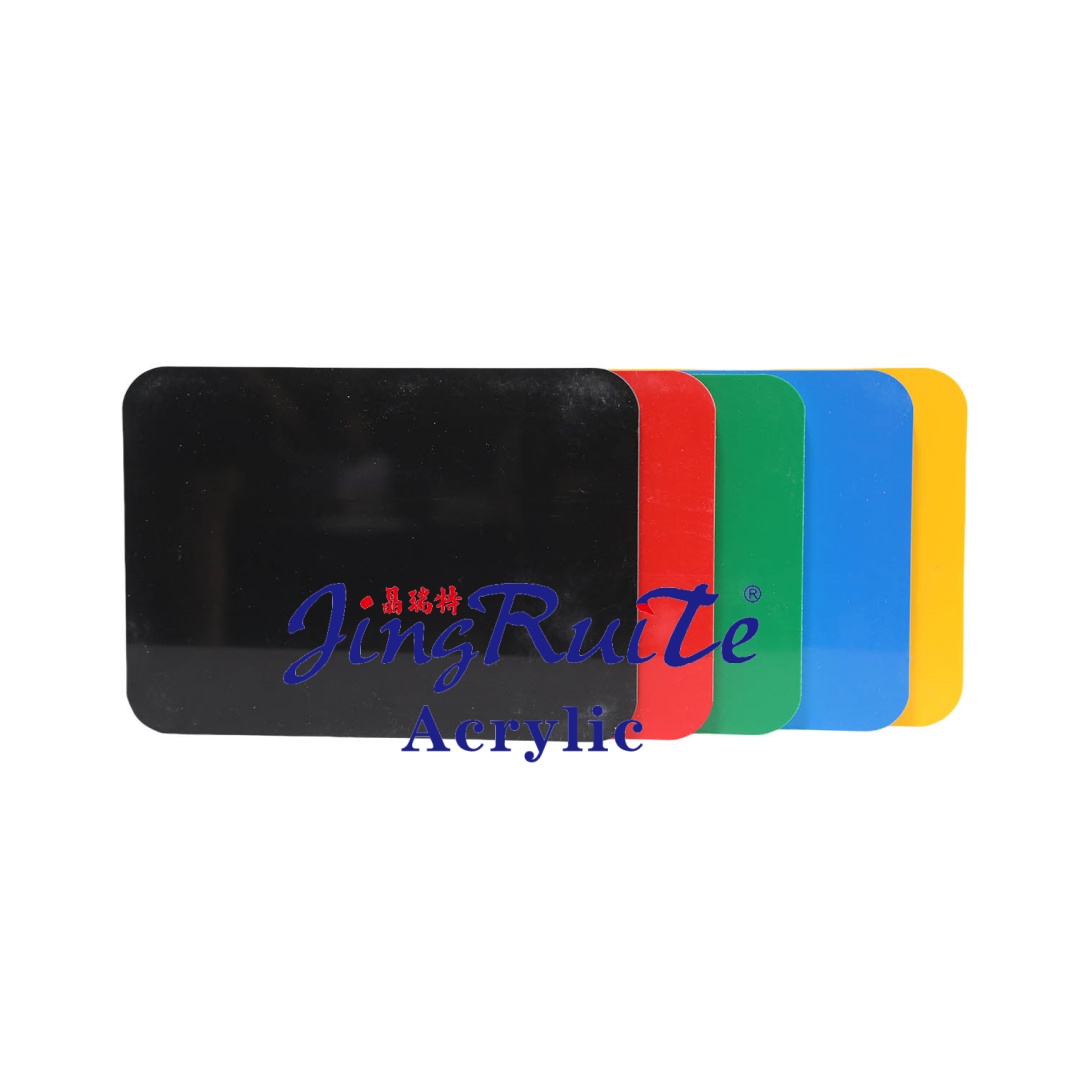

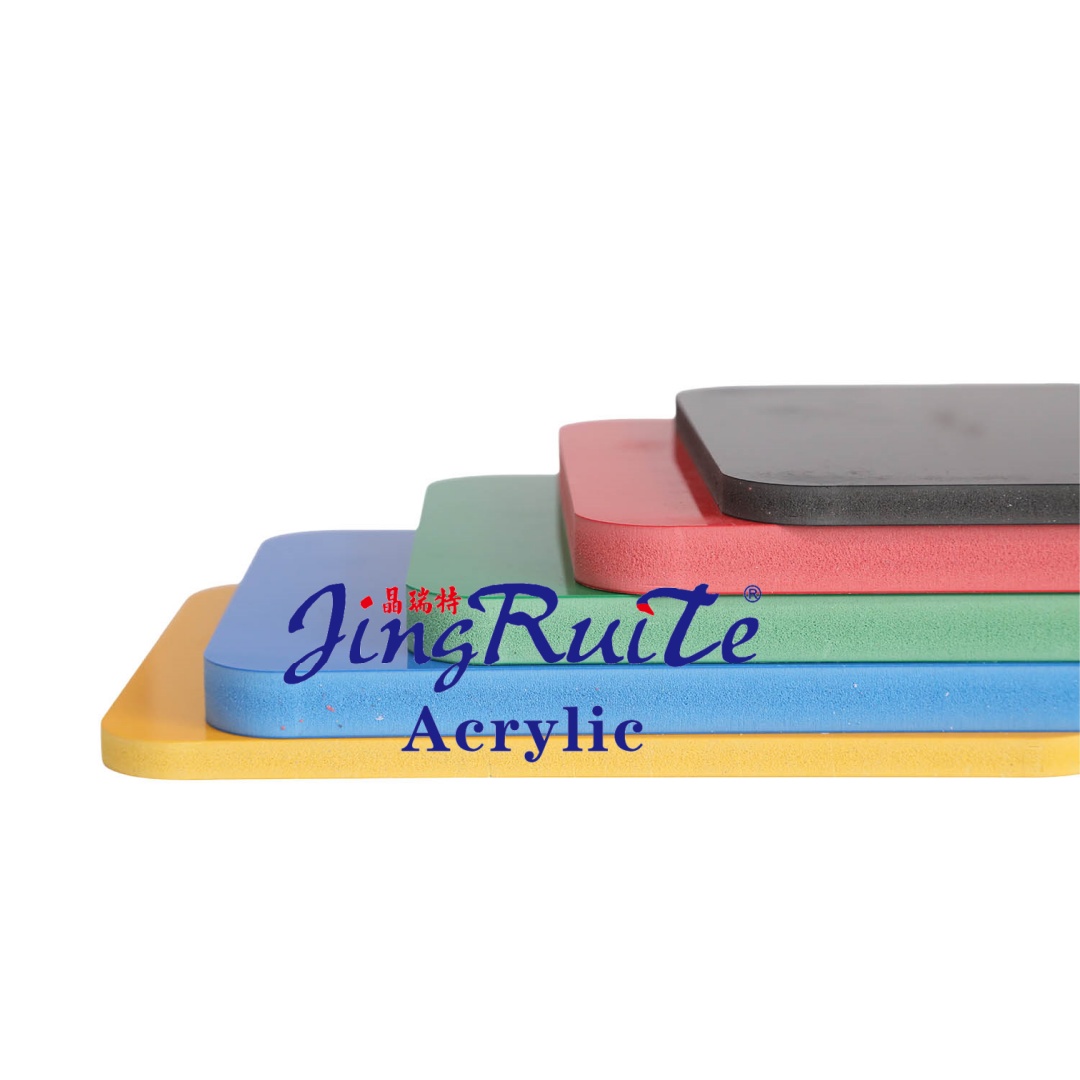

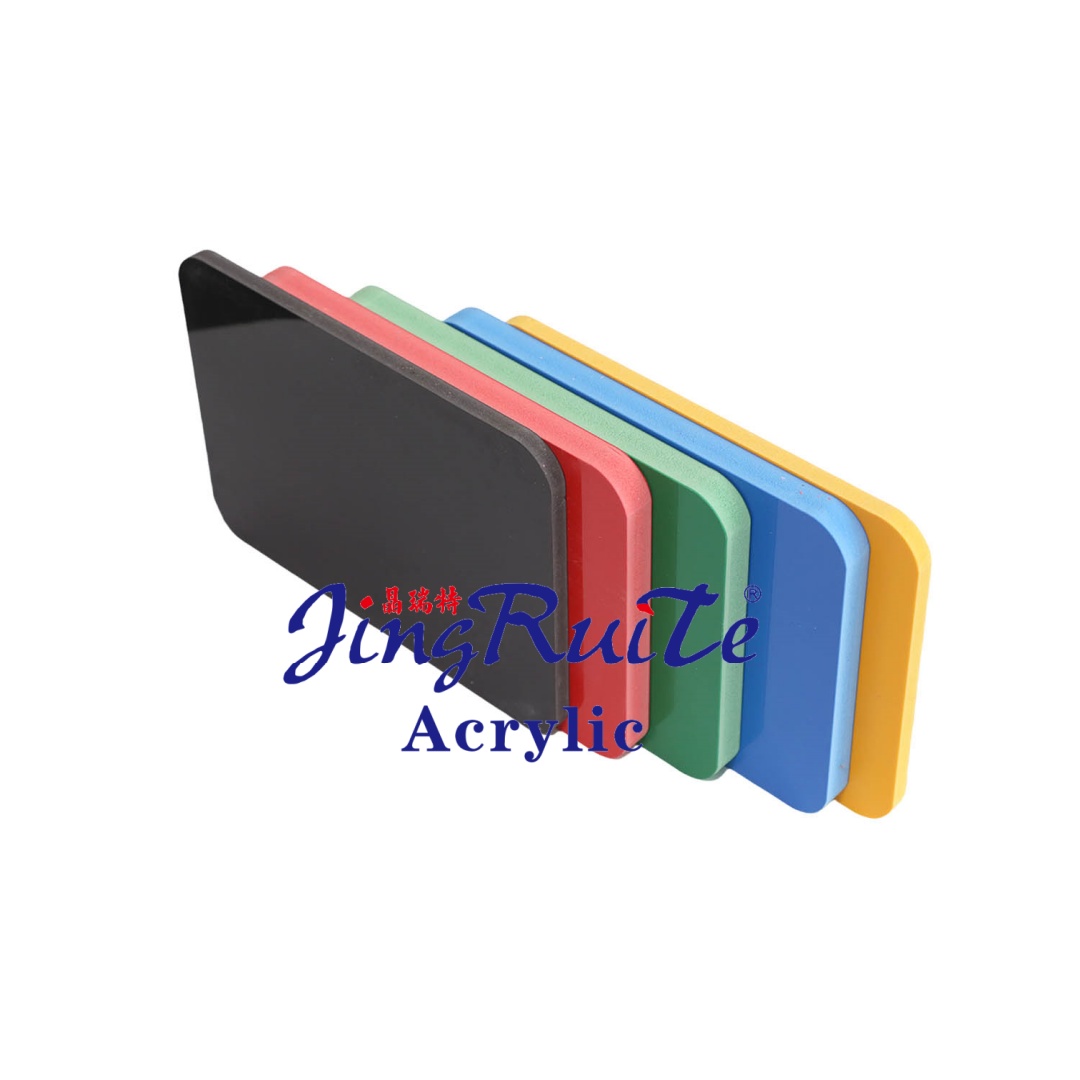

PVC Color Foam Board
PVC Color Foam Board is a colored sheet produced through co-extrusion process, using polyvinyl chloride resin as base material with addition of organic pigments and foaming agents. The surface layer is 0.2-0.5mm high-density PVC color layer, and the core layer has a closed-cell foam structure (density 0.45-0.8g/cm³). It offers 10 standard colors and custom colors (matching RAL color chart), with thickness ranging from 3mm to 30mm and standard size of 1220×2440mm. The surface smoothness Ra≤1.6μm makes it suitable for direct printing and engraving, ideal for advertising signage and decorative applications.
PVC Color Foam Board is a colored sheet produced through co-extrusion process, using polyvinyl chloride resin as base material with addition of organic pigments and foaming agents. The surface layer is 0.2-0.5mm high-density PVC color layer, and the core layer has a closed-cell foam structure (density 0.45-0.8g/cm³). It offers 10 standard colors and custom colors (matching RAL color chart), with thickness ranging from 3mm to 30mm and standard size of 1220×2440mm. The surface smoothness Ra≤1.6μm makes it suitable for direct printing and engraving, ideal for advertising signage and decorative applications.
Core Features
- Color Performance: High color saturation (ΔE≤2), strict batch color difference control, outdoor fading rate ≤5% after 2 years
- Physical Properties: Flexural strength ≥20MPa, impact strength ≥12kJ/m², good rigidity and low deformation
- Weather Resistance: Operating temperature from -40℃ to 70℃, waterproof (water absorption ≤1%), mildew-proof, UV resistant
- Processing Performance: Can be cut, drilled, planed with woodworking tools; suitable for nailing, screwing or bonding
- Surface Properties: Printing adhesion ≥2N/cm, suitable for UV inkjet, screen printing, digital printing
- Environmental Indicators: Formaldehyde-free, heavy metal content <10ppm, compliant with EU RoHS and REACH standards
Application Scenarios
Advertising and Signage
- Signage: Outdoor billboards, 3D letter carving, light box panels
- Display: Exhibition display stands, POP advertising, promotional props
- Digital Printing: UV flatbed printing substrate, photo exhibition boards, vehicle wraps
Construction and Decoration
- Interior Decoration: Wall panels, ceilings, partition screens
- Furniture: Cabinet doors, bathroom vanities, storage boxes, display cabinets
- Construction: Temporary fences, construction site protection panels, formwork liners
Industrial and Special Applications
- Vehicle Interior: Automotive interior panels, ship cabin partitions, RV renovation
- Packaging: Precision instrument packaging, turnover boxes, gift boxes
- Model Making: Architectural models, industrial prototypes, film props
Technical Parameters
| Property | Test Method | Value Range |
| Density | ASTM D792 | 0.45-0.8 g/cm³ |
| Flexural Strength | ASTM D790 | 20-30 MPa |
| Impact Strength | ASTM D256 | 12-18 kJ/m² |
| Water Absorption | ASTM D570 | ≤1% |
| Thermal Conductivity | ASTM C177 | 0.06-0.08 W/(m·K) |
| Heat Deflection Temperature | ASTM D648 | 65-75℃ |
| Linear Thermal Expansion | ASTM D696 | 7-9×10⁻⁵/℃ |
| Flame Rating | UL94 | V-0 |
Colors and Specifications
Standard Colors
- Basic Colors: White, black, red, yellow, blue, green, gray
- Special Colors: Orange, purple, brown, pink (custom RAL color numbers available)
- Dual Colors: Two-color on both sides (e.g., black-white, blue-white combinations)
Product Specifications
| Thickness | Standard Size | Density | Application |
| 3-5mm | 1220×2440mm | 0.45-0.55g/cm³ | Advertising printing, signage production |
| 8-15mm | 1220×2440mm | 0.55-0.7g/cm³ | Furniture manufacturing, display stands |
| 20-30mm | 1220×2440mm | 0.7-0.8g/cm³ | Heavy-duty packaging, structural components |
| Custom | As per request | 0.45-0.8g/cm³ | Special projects |
Processing and Installation
- Cutting: Circular saw (100-120 teeth), utility knife (thin sheets), laser cutting (precision processing)
- Joining: PVC-specific adhesives (e.g., neoprene glue), self-tapping screws (recommended diameter 3-5mm)
- Printing: Pre-treatment recommendation: alcohol cleaning of surface, best adhesion with UV inks
- Painting: Can use acrylic or polyurethane paints without primer
- Installation: Lightweight (1/3 the weight of wood), can be installed with adhesive, screws or magnetic mounting
